CasaTunesX App User Guide

The CasaTunesX App is the latest Cross Platform App from CasaTunes that works the same, regardless of whether you are using an Android or Apple phone or tablet, or an HTML5 web browser.

You can download the CasaTunesX App for Android and Apple from their respective stores.

To access the CasaTunesX HTML5 Browser App, type the following URL into your browser:

PC: http://casaserver/casatunesx
MAC: http://casaserver.local/casatunesx
Other: http://<IP Address of Music Server>/casatunesx

Contents

Rooms

Allows users to view which rooms and room groups are currently powered on, allows users to quickly power individual rooms, or all rooms, on and off, and to navigate to a specific room to view and control the music playing in a room

View which rooms are on in your home, and select the room to control
1
Home Name

You can customize the name for your home using the options menu.

From the options menu, select Rename "My Home"

2
Home Picture

You can add, change or remove a custom picture of your home.

From the options menu select Add Home Image, Remove Home Image and Change Home Image to add, remove or change the image.

You can select a landscape image from your Photo library.

3
Rooms Section

The rooms section displays all the rooms you have configured.

You can display your rooms by list (as shown), by images or by chips.

To change how your rooms are displayed select Settings > General Settings > App  > View Room By from the options menu.

4
Room Item

You can toggle the power on and off for a room, view the room name, and navigate to the room to see what's playing in a room.

5
Powered Rooms

You can quickly see which rooms are powered, as these rooms are highlighted in Blue.

6
Room Groups Section

A room group allows you to control a group of rooms as if they were just another room.

Room groups are often used in "open plan" homes where you want to listen to the same music in the dining, kitchen and living rooms.

7
Rooms Options Menu

The options menu presents options to change the name and picture for your home, to power on all rooms, to access your settings, and access support.

Please note the options menu is scrollable, as there may be more options than available screen real estate.

8
Rooms Detail Information

Select this option to toggle displaying additional room information, including the type of speaker for a room, the physical zone number for a room, and to display the rooms that are part of a room group.

This is typically used by Support and installers for trouble shooting.

9
All Off

Press this button to power off all rooms.

By default, you will be prompted to power off all rooms now, or after a delay. You can change this default behavior to only display this option if you press & hold the All Off button.

From the option menu, select Settings > General Settings > App > Sleep Timer to change this option.

10
Rooms On Count

Displays the number of rooms that are currently on.

11
Add a Room Group

Press this button to create a new room group. A wizard will explain how room groups work, and walk you through the process of creating a room group.

12
Edit Room Group

Select this option to change or delete a room group.

Back to top

Now Playing

Allows users to view and control the music that is currently playing in the selected room.

View and manage the current song that is playing in a room
1
Back Button

Navigate the App back to the Rooms Screen.

2
Room Power

Toggles the room on and off.

By default, you will be prompted to power off the room now, or after a delay. You can change this default behavior to only display this option if you press & hold the power button.

To change this option, select Settings > General Settings > App > Sleep Timer from the option menu.

3
Room Name and Source

Displays the name of the room and the current source that is selected for a room.

If more than one room is powered and using the same source, then the App displays how many other rooms are sharing this source (+1 in this example).

You can also configure the App to hide (default), show or toggle displaying the Rooms and/or Sources below the header for quickly changing the room and/or source.

To change this option, select SettingsGeneral Settings AppDisplay Sources and/or Display Rooms from the option menu.

4
Music Service

Displays which music service is currently being used.

5
Song Progress Bar

Displays the current song progress.

6
Volume Controls

The CasaTunesX App includes 2 different types of volume controls, the up/down auto-repeat buttons (shown and recommended) and a slider option. You can press and hold the + and - buttons to raise and lower the volume respectively.

You can change this option by selecting SettingsGeneral SettingsAppVolume Control from the option menu.

You can also change the volume by sliding your finger up & down over the artwork cover.

7
Volume Mute

Toggles mute on & off for the room.

8
Transport Controls and More

This row of icons are primarily used to display media player controls.

If the number of media player icons exceed the available space, then the least used icons are added to the transport menu option.

In addition to media player icons, there are icons to display the queue, and to search and browse your music.

9
Scroll Media Player Controls

You can rotate the lower section of the screen to display the media player controls (shown), a slider to change the position within a song, and to display the next song to play (when in portrait mode)

10
Now Playing Options Menu

Displays various options, including: grouping rooms, configuring alarms, setting a sleep timer, changing the source for the room, changing settings, and accessing support.

Please note the options menu is scrollable, as there may be more options than available screen real estate.

11
Room Notifications

The App uses this space to display various notification buttons, for example, when an alarm has been set for the room (as shown), when a sleep timer is active for the room, alerts or issues CasaTunes has detected, etc.

Pressing the notification button displays more information about the notification.

12
App Launch Button

Some music services and sources allow you to launch the associated App from within the CasaTunesX App. Most mobile platforms provide a simple, and quick option to return back to the CasaTunesX App.

For example, when using the Spotify music service, the CasaTunesX App will allow you to switch to the Spotify App (and vice versa).

13
Music Service Account Information

Since you can have multiple accounts of each music service, the App will display the name of the account being currently used.

You can configure the name of the account to be displayed in the Root Music Screen (see below).

14
Music Cover Art+

In addition to displaying the cover art for the current song, depending on the music service, tapping the image will navigate you to the album page, or even to a third party app (in the case of Spotify).

You can also change the volume for a room by dragging your finger up and down.

Double tap the image to power the room on and off.

15
Equalizer Settings

Depending on the CasaTunes matrix amplifier you are using, you can use the App to configure the bass, treble, balance, loudness and equalization presets to use for the room. Not all these features are supported on all matrix amplifiers.

Equalizer settings, if available, are only available for rooms, not room groups.

16

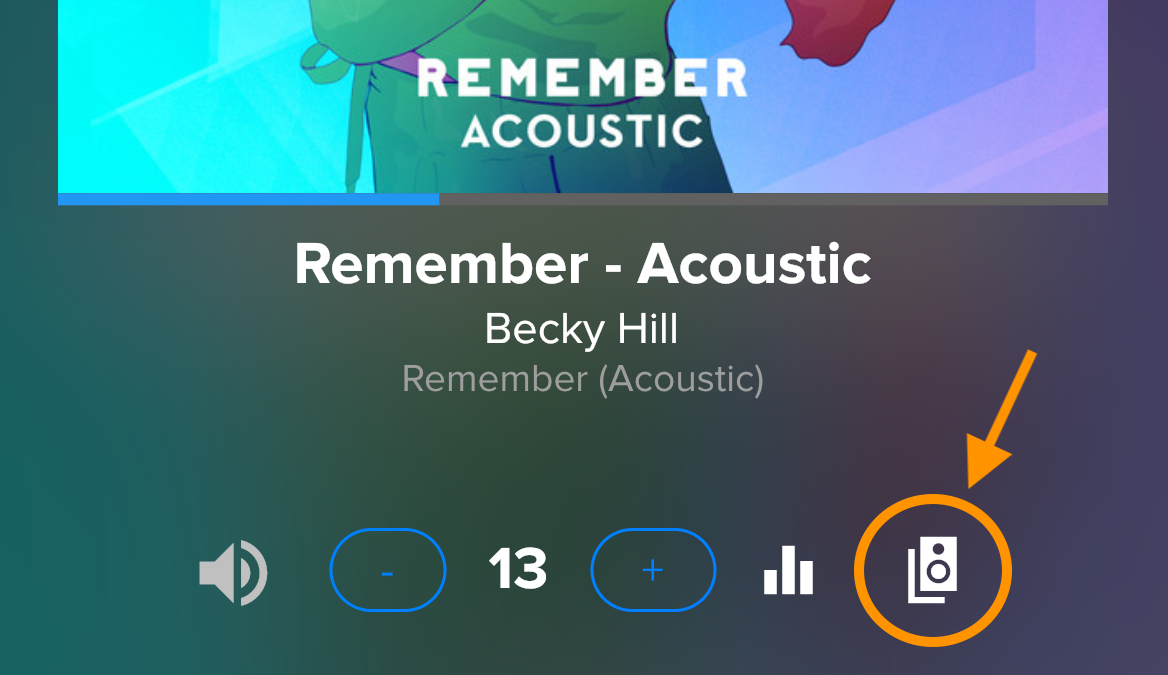

Group Volume Control

When more than one room is powered on and these rooms are using the same source, the Group Volume Control will be displayed.

You can use the Group Volume Control to change the volume for all rooms (using the Master Volume buttons) or individual rooms.

See Group Volume Control below to learn more.

17
Browse and Select Music

Press this button to browse and select your music.

18
Media Player Options

This button will present less frequently used options including any media player options that did not fit in the media player bar.

Options often include shortcuts to navigate automatically to the current album and artist, as well as search for similar music.

Please note the media player options menu is scrollable, as there may be more options than available screen real estate.

Back to top

Queue

Allows users to view the music in the queue, change the current song that is playing, save the queue as a playlist, and delete a song or all songs in the queue.

You can change the current song, delete one or all songs, and save the queue as a CasaTunes playlist
1
View Queue

In the Now Playing screen, users can tap the music queue button to view the contents of the queue.

Not all music services provide access to the queue (for example, Spotify does not currently support this capability).

2
Delete Queue

Tap this button to remove all the songs from the queue.

If you would like to remove a specific song from the queue, swipe left on the song.

3
Save Queue as Playlist

Tap this option to save the current music in the queue as a CasaTunes playlist.

4
Scroll To Current Song

Tap this button to scroll the queue and  locate the current song that is playing,

5
Now Playing Song Indicator

Shows the current song in the queue that is playing.

Back to top

Group Volume Control

Allows users to change the volume for all grouped rooms (master volume), or change the volume for individual rooms

Control the volume for a group of rooms
1
Master Volume Buttons

Use these buttons to change or mute the volume for all grouped rooms.

2
Individual Room Volume Control

Use these buttons to change or mute the volume for a specific grouped room.

Back to top

Select Music (top most)

Allows users to select music from a variety of  disc based, network, and Internet music services.

Featured Items allows users to quickly select their favorite playlists, albums or stations, and to quickly navigate to an artist or other shortcut, or even perform an automated search.

From this top most screen, users can use the App to add, authenticate, login, change or delete music services and accounts.

Manage the music services you want to listen to
1
Back Button

Tap the back button to return to the Now Playing screen.

2
Music Title

Displays the source name if you are at the top of the selection process, or the title of the music container.

3
Featured Items

Featured Items are displayed in the top most music selection screen.

Featured Items provide quick access to the music you listen to most. Not only can you add all your favorite albums, artists, playlists and radio stations as featured items, but you can also add shortcuts and searches.

The App displays the 20 last used featured items.

4
Aggregated Search

When displaying the top most screen in the music selection process, you can perform an aggregated search.

An aggregated search allows you to search across all the music services you have setup and enabled for searching in CasaSetup.

5
Add/Change/Delete Music Services and accounts

When in the top most music selection screen, tapping the EDIT button will switch the App into edit mode and allow you to add, change (rename) and delete your music service accounts.

When in edit mode, tap the + button (see 9 below) to add a music service account.

Select the music service account options (see 7 below) to rename, re-authenticate and delete a music service account.

Tap the DONE button (shown above) when you have finished editing your music services accounts.

If the account you are using requires you to login or authenticate the account, you will be prompted to do so when you navigate into the music service.

6
All Featured Items

Select this option to view all your featured items, to view featured items organized by type, or to edit (rename/delete) a featured item.

7
Rename or Delete a Music Service Account

When in edit mode, select this option to rename, delete or re-authenticate a music service account.

8
Navigate Into

You can navigate or drill down to discover and select more music by tapping this option

9
Add a Music Service Account

Use this option to add a music service account or to add a uPNP media server.

Back to top

Select Music (other)

Allows users to navigate, search and select  music

Browse and select the music to listen to
1
Tap or Press & Hold Back Button

Tapping the Back button returns to the previous screen.

Press & Hold the Back button will return control to the top most music selection screen.

2
Shuffle, Play and Add music

Select to play or add the music listed in order, or shuffle and play the listed music in random order.

3
Home Button

Tap the Home button to return to the Now Playing screen.

4
Featured Item Button

Tap to toggle whether to set the current item as featured or not. Featured items are displayed in the top most music selection screen for quick access.

5
Information Button

Tap to display information about a song, album, artist, playlist or other items.

This feature is not available on all music services.

6
Search Button

Tap this button to search for music in this Music Service only.

7
More Music Selection Options

Tap to display more music selection options for this music service.  For example, adding this song to a native music service playlist.

Please note the music selection options menu is scrollable, as there may be more options than available screen real estate.

Back to top

Set Alarms (Wake up to Music)

Allows users to wake up to music, by configuring one or more alarms for different days and times of the week

Wakeup to your favorite tunes by creating alarms for one or more rooms
1
Configured Alarms Section

Displays all the alarms that have been configured for this room.

To access this screen from the Now Playing screen, select Configure <Room Name> Alarms from the menu options or click on the alarm notification icon (if present).

2
Enable or Disable Alarm

Allows the user to temporarily disable an alarm without deleting the alarm.

3
Edit Alarm Details

Allows the user to edit the alarm configuration.

4
Delete Alarm

Tap the delete button to delete the alarm.

5
Alarm Summary

Provides a quick overview, including; the time the alarm is set to start and optionally end, as well as which days of the week the alarm is scheduled for.

6
Create New Alarm

Allows users to create a new alarm.

7
Alarm Start Time

Allows the user to set the time of the day when the alarm will start and turn on the room or room group.

8
Alarm End Time

Allows the user to set the time when the alarm will end and the room (or room group) is powered off.

9
Enable Alarm End Time

Allows the user to specify whether the alarm should shut off after a specified amount of time, or not.

10
Days of the Week

Allows the user to specify which days of the week this alarm is scheduled for.

11
Alarm Volume

Allows the user to set the volume for the alarm.

12
Ramp Volume

When enabled, CasaTunes will ramp up the volume slowly (over a 30 second period) when the alarm starts, and ramp down the volume when the alarm ends.

13
Alarm Source

Allows the user to select a specific media player source to use to switch to when the alarm goes off.

If you do not want to change the current source or music that was last playing, select Current.

14
Alarm Playlist or Featured Item

If you selected a specific source in the previous step,  you can select a specific playlist or (playable) featured item to play when the alarm goes off.

If you do not want to change the previously playing music, select Previously Playing Music.

Back to top

App Settings

You can customize both the appearance and the behavior of the App based on your preferences.

App Settings apply to the current device only, so you can setup different preferences for different type of devices, for example your phone and tablet.

Once you have optimally configured your settings for a device, you may lock down these preferences in Settings > Passwords > Settings Password

Customize the appearance and behavior of the App
1
Select App Settings

Customize the appearance and behavior of the App by changing the App Settings.

2
Appearance

You can customize to use the App in Dark or Light mode. We recommend Dark mode.

3
View Rooms By List, Images, or Chips

You can view your rooms in the Rooms View as a list (default), by images (you can add your own room images), or by chips (flow).

4
Show Details (for room)

Select whether to hide, show or toggle displaying the source and volume for a room in the Rooms View.

5
Volume Control

Select whether to display volume up/down buttons with auto-repeat, or using a slider control to change the volume.

We recommend using the up/down buttons as it is easier to finely tune the volume.

To increase or decrease the volume rapidly simply press and hold the up/down buttons.

In the Now Playing screen, you can change the volume by sliding your finger up & down over the artwork cover.

6
EQ Settings

Select whether to display the Equalizer Settings button for a room in the Now Playing screen.

Depending on the matrix amplifier you are using, you can configure the balance, bass, treble, loudness and select an EQ preset for the room.

7
Music Selection History

When browsing your music, you can configure whether theApp remembers the last location you were browsing so the next time you select to browse your music, you return to last music you selected.

If this option is enabled, and you want to browse for new music, you can always return to the root of the music selection process by pressing & holding the back button.

8
Sleep Timer

By default when you press the All Off button (in the Rooms screen) or the Power button in the Now Playing screen, the App will display the Sleep Timer options.

You can change this setting so that pressing the All Off or the Power button will simply turn the room off without displaying the Sleep Timer options.

You can still display the Sleep Timer options by pressing and holding the All Off or Power buttons.

9
Group Volume (Not Shown)

When same source is being used in more than one room, the App will display the Group Volume button by default.

This option allows you to enable or disable showing this button in the Now Playing screen.

Pressing this button allows you to change the volume for all grouped rooms using the Master Volume control, or change the volume for each individual room (see Group Volume above for more details).

We recommend this option for more advanced users.

10
Display Sources (Not Shown)

In the Now Playing screen you can quickly change sources by displaying the available sources just below the header.

You can select to hide (default), show or toggle displaying these sources.

11
Display Rooms (Not Shown)

In the Now Playing screen you can quickly change rooms by displaying the available rooms just below the header.

You can select to hide (default), show or toggle displaying these rooms.

12
Select Music Server on Startup (Not Shown)

Enable this option if you are controlling more than one CasaTunes music server.

When enabled, the user will be prompted on startup to select the CasaTunes music server they wish to control.

Back to top

System Password

The System password is used to control who can access CasaTunes. This is useful in commercial installations when you want to prevent patrons or unauthorized users from accessing CasaTunes.

Set a System Password to prevent unauthorized users from accessing your CasaTunes system

The System password is optional, and is disabled by default.

Back to top

User Profiles

CasaTunes User Profiles provides an easy way to customize the CasaTunesX App User Experience for customers and to limit or “lock down” the configuration changes a user can make to their CasaTunes system, preventing customers from inadvertently reconfiguring CasaTunes

CasaTunes ships with 3 built-in profiles, the Admin, User and Guest profiles.  Only the Admin profile allows users to make configuration changes to their CasaTunes system and to manage the User Profiles.

To select a different User Profile, go to Menu > Settings > Change User Profile.

Select a User Profile for a device

In addition to the Admin, User and Guest profiles, CasaTunes provides two special profiles, the “Special - Room” and “Special - Smart Tasks” profiles.

Select the “Special - Room” profile when you want to dedicate a device to control a single room or room group.  This profile pre-configures the profile settings required to lock down a device to control a specific room.

Select the “Special - Smart Tasks” profile when you want to dedicate a device to display the Smart Tasks page (custom UI) for a Smart Task User.

CasaTunes includes 3 custom profiles, Custom1 , Custom2 and Custom3 respectively, which you can rename and customize for your specific needs, if required.

Customize the CasaTunesX User Experience  by configuring the User Profile Settings

When the Admin profile is selected, the admin can select the default User Profile and lock the User Profile settings (see image above).

The default User Profile is the profile assigned to all new devices that connect to the music server (See step 4 in the image above).

When CasaTunes is installed, it assigns the Admin profile as the default User Profile. We recommend that after you have completed configuring the system, you select the User profile as the default User Profile. This ensures users will not be able to change the CasaTunes system configuration.

In order to prevent users from changing the selected profile and/or profile settings for a device, you should lock the Profile Settings (see step 5 in the image above). When locking the profile settings, the admin will be prompted to enter a password and a recovery email that can be used to recover a lost password.

You can change the profile settings for any User Profile, including the admin, user and/or guest profiles. If you decide later you want to restore the profile settings, you can restore the original profile settings by selecting the Reset Settings button (Step 6 in the image above).

Each profile includes a list of Profile Settings. These settings provide control over various CasaTunesX App settings and/or features, allowing you to hide or show controls, menus and buttons available in the User Interface, control access to rooms and sources, and control Smart Tasks options (see image above).

To learn more about User Profiles, check out the following video

Back to top
